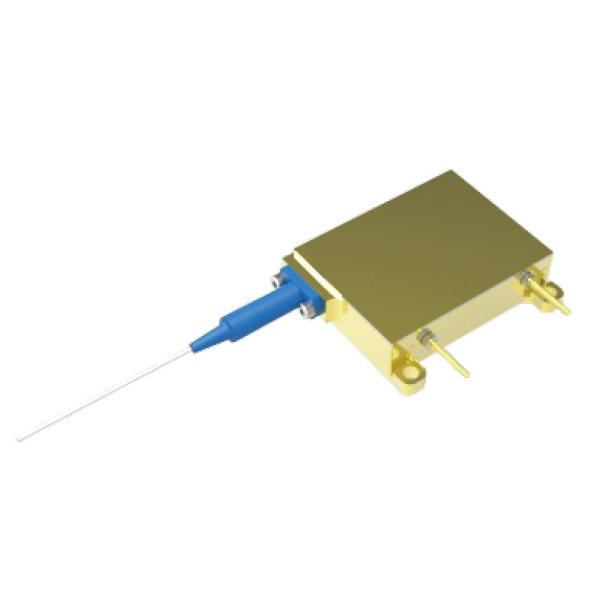

808nm, 915nm, 976nm Fiber-coupled Diode Laser Modules

Brand Name : Sintec Optronics

Delivery Time : Stock

Payment Terms : T/T via bank

Model Number : STCX Series

Contact Now

808nm, 915nm, 976nm Fiber-coupled Diode Laser Modules

(1) STCX-DDLM Series 100-1000W Turn-key Diode Laser Systems

Optical
Center Wavelength nm 915/976 915/976 915/976
Wavelength Tolerance nm ±20 ±20 ±20
Output Power W 100/150 30-150 (optional) 300
Output Power Unstability % 1 3 3
Power Tunability % 10-100 10-100 10-100
Fiber Core μm 200 105/135/200/400 200
Numerical Aperture - 0.22 0.22 0.22
Fiber Connector - SMA905 SMA905 QCS/QPSMA905
Fiber Length m 5 5 5
Aiming Beam
Indicator Wavelength nm 650 650 650
Output Power mW ≤2 ≥2 ≥2
Electrical
Modulate Frequency - CW/Modulate CW/Modulate CW/Modulate
Operation Mode Hz 1~10k 1~1k 1~1k
Input Voltage - 220VAC±10% 50/60Hz 220VAC±10% 50/60Hz 220VAC±10% 50/60Hz
Input Current A ＜10 ＜10 ＜10
Thermal
Operating Temperature °C 5-40 5-40 5-40
Storage Temperature °C -25-55 -25-55 -25-55
Environmental Humidity - Max70%@25°C Max70%@25°C Max70%@25°C
Cooling System - Air Cooling(TEC) Water Cooling (TEC) Water Cooling (TEC)
Others
Dimension mm 490 X 484 X 133 556 X 460 X 133 696.5 X 448 X 140
Optical
Center Wavelength nm 976 976
Wavelength Tolerance nm ±20 ±20
Output Power W 200/300/400/500 1000
Output Power Unstability % 1 3
Power Tunability % 10-100 100-1000
Fiber Core μm 200 200
Numerical Aperture - 0.22 0.22
Fiber Connector - QBH QBH
Fiber Length m 5 5
Aiming Beam
Indicator Wavelength nm 650 650
Output Power mW ≥2 ≥2
Electrical
Modulate Frequency - CW/Modulate Modulate
Operation Mode Hz 1~10k 1~200
Input Voltage - 220VAC±10% 50/60Hz 220VAC±10% 50/60Hz
Input Current A ＜10 ＜10
Thermal
Operating Temperature °C 5-40 5-40
Storage Temperature °C -25-55 -25-55
Environmental Humidity - Max70%@25°C Max70%@25°C
Cooling System - Water Cooling Water Cooling
Others
Dimension mm 550 X 484 X 133 550 X 484 X 133

(2) STCX-DDLF Series 2000-4000W Turn-key Diode Laser Systems

Optical
Center Wavelength nm 976±20 (915 optional) 976±20 (915 optional) 976±20 (915 optional)
Output Power W 2000 3000 4000
Output Power Unstability % ≤3 ≤3 ≤3
Power Tunability % 10-100 10-100 10-100
Fiber Core μm 400/600/800 400/600/800 600
Numerical Aperture - 0.22 0.22 0.22
Fiber Connector - QBH QBH QBH
Fiber Length m 10/20 (optional) 10/20 (optional) 10/20 (optional)
Aiming Beam
Indicator Wavelength nm 650 650 650
Output Power mW 2 2 2
Electrical
Operation Mode - CW CW CW
Modulation Frequency 100 100 100
Input Voltage - 380VAC±10% 50/60Hz 380VAC±10% 50/60Hz 380VAC±10% 50/60Hz
Input Power kW 4.6 6.9 9.2
Thermal
Operating Temperature °C 5-40 5-40 5-40
Storage Temperature °C -25-55 -25-55 -25-55
Environmental Humidity - 70%@25°C 70%@25°C 70%@25°C
Cooling System - Water Cooling Water Cooling Water Cooling
Others
Dimension mm 945 x 470 x138 945 x 470 x138 945 x 470 x138

(3) STCX-DDLF Series 4000-6000W Turn-key Diode Laser Systems

Optical
Center Wavelength nm 976 976
Output Power W 4000 6000
Output Power Unstability % ≤3 ≤3
Power Tunability % 10-100 10-100
Fiber Core μm 600/1000 600/1000
Numerical Aperture - 0.22 0.22
Fiber Connector - QBH QBH
Fiber Length m 10/20( Optional) 10/20( Optional)
Aiming Beam
Indicator Wavelength nm 650 650
Output Power mW ≥1 ≥1
Electrical
Operation Mode - CW CW
Input Voltage - 380VAC±10% 50/60Hz 380VAC±10% 50/60Hz
Input Power W 10000 14000
Thermal
Operating Temperature °C 5-40 5-40
Storage Temperature °C -25-55 -25-55
Environmental Humidity - 70%@25°C 70%@25°C
Cooling System - Water Cooling Water Cooling
Others
Dimension mm 889 x 803 x 789 889 x 803 x 789
